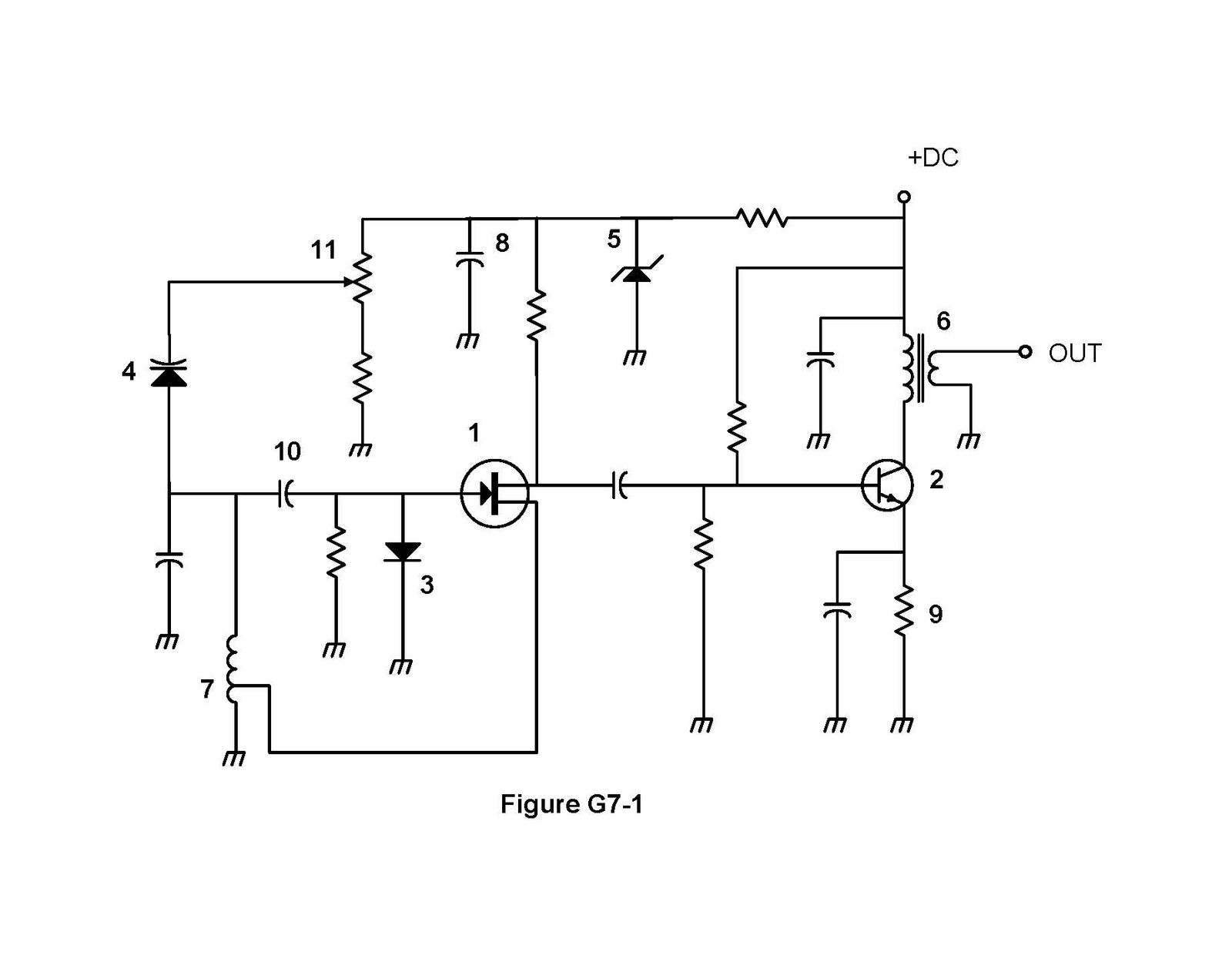

Which symbol in figure G7-1 represents a field effect transistor?
AnswerSymbol 1
In Figure G7-1, symbol 1 is the field-effect transistor symbol.
